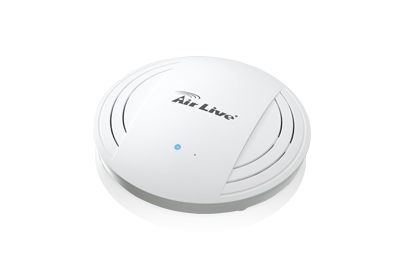

AP PoE 11AC Amplio Rango POE 1200 Mbps hasta 100 usuarios

Código de Producto:
AL-AC.TOP

Precio:
Registrarse.

  • Cantidad:

Agregar al carro



Producto de disponibilidad permanente, garantía de 6 meses.

Chipset MEDIATEK MT7620A (CPU) +QCA9882
16MB SPI Flash, 64MB DDR2 RAM
LAN Port 10/100/1000M (Auto-MDI/MDI-X) UTP Port x 1
Antenna 2 X 2.4G 3dBi + 2 X 5G MIMO Internal Antenna
Frequency Range 2.4G: 2.4000~2.4835GHz (Industrial Scientific Medical Band)
Frequency Range 5G
- 5180 ~5240GHz ETSI.FCC
- 5745 ~ 5825GHz for FCC
Data Rate
11n (40MHz): MCS0-7, up to 300Mbps
11n (20MHz): MCS0-7, up to 144Mbps
11g: 6, 9, 12, 24, 36, 48, 54Mbps
11b: 1, 2, 5.5, 11Mbps
11ac(80Mhz): MSC0-9 , up to 866Mbps
Wireless Security: WEP, WPA-PSK, WPA2-PSK, WPA-Radius, 802.1x/EAP
Software, Web Base Management
Setup Wizard, Wireless Mode: AP, WDS Repeater, Disable the SSID, Support Auto Channel
Channel Width Setting, Data Rate Selection, Tx Power Adjustment, Fragment Threshold, RTS Threshold
Beacon Interval, Preamble Type, CTS Protection, Short GI, DTIM Period, Wireless Access Control,
Wireless Site survey, WPS, Wireless Scheduling, Build in Radius Server and Account, Support Dynamic / Static IP address Assignment, Device Name Setting, Support NTP and Daylight Saving, Password Changeable, Support HTTPS, SNMP v1/2c Get/Set Community, SNMP Trap with Private MIB, Firmware Upgrade, Configuration Backup and Restore, Device Statistics, System Log in the Device and Remote Log Server, Schedule Reboot, Management Feature, IP Wizard, AirLIve Central Wireless, SNMP v1/v2c
Web Management
Maximum Output Power (EIRP)
ETSI
- 2.4GHz : 19±1dBm
- 5GHz : 22±1dBm
FCC
- 2.4GHz : 26±1dBm
- 5GHz : 22±1dBm
Receive Sensitivity
2.4GHz
- 11b(11M): -90±2dBm
- 11g(54M): -75±2dBm
- 11n(20MHz, MCS7):-70±2dBm
- 11n(40MHz, MCS7):-70±2dBm
5GHz
- 11a(54M): -72±2dBm
- 11n(20MHz, MCS7): -68±2dBm
- 11n(40MHz, MCS7): -68±2dBm
- 11ac(80MHz, VHTMCS9): -58±2dBm

Alimentacion: 12V / 1A o POE 802.11af, fuente no incluida.

Temperatura de operacion: 0~50 ℃
Humidad relativa de operacion: - 10~90% (Non-Condensing)
Certificados: CE, FCC
Dimensiones: 176(D) x 30(H)mm
Peso: 306 (g)

Documento Descarga
Folleto del fabricante Descargar
Manual Descargar
Guia Rapida Descargar
